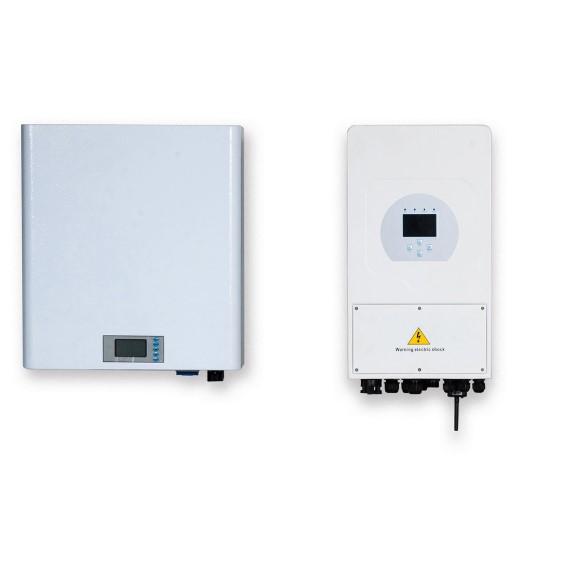

Solar Home Energy Storage Battery Pack 48V200ah Lithium-Ion Battery

  • Solar Home Energy Storage Battery Pack 48V200ah Lithium-Ion Battery
  • Solar Home Energy Storage Battery Pack 48V200ah Lithium-Ion Battery
  • Solar Home Energy Storage Battery Pack 48V200ah Lithium-Ion Battery
  • Solar Home Energy Storage Battery Pack 48V200ah Lithium-Ion Battery
  • Solar Home Energy Storage Battery Pack 48V200ah Lithium-Ion Battery
Model No.︰JW10KWH
Brand Name︰JINWO
Country of Origin︰China
Unit Price︰US $ 1799 / pc
Minimum Order︰10 pc
Share on:

 Total 32 Related Items
Prev45678Next

Product Description

48V Lithium Ion Battery 5kwh 10kwh 48V 50ah 100ah 150ah 200ah LiFePO4 Battery 48V Solar System Lithium Battery


Our Energy Storage Solutions:  JINWO Lithium Iron Phosphate Batteries are a complete energy storage system. The integrated Battery Management System (BMS) monitors and regulates each cell in the battery bank to provide perfectly balanced charging and discharging. Includes fuse and internal DC disconnect to provide battery protection and isolation. The lithium-ion solar battery system is contained in a rugged metal enclosure. Quick and easy installation.


Product Highlights

1. Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

2.No Thermal Runaway with Fire Propagation

3.No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling

4. Extended Operating Temperature -4 to 140F

 5.98% Efficiency Rate

 6.Fast Charge & Discharge Rates

 7.10,000 Cycle Life with 10 Years Warranty

 8. Cycle One to Several Times Per Day

 9.Seamless Integration with All Industry Standard Inverter/Charge Controllers

 10.Built-In Safety - BMS with Breaker On/Off Switch for Shipping & Installation

 Modular, Scalable & Proven Performance



>Self-powered home

Use solar and Allspark power to reduce reliance on the grid and run your home off solar day and night.



>Backup Power

Protect your home from a power outage with seamless and reliable backup power.



>Energy saving

Reduce your electricity bill, if your utility offers a time-of-use rate plan.



>Home energy control

Manage and control your home energy by our mobile App.




Type  Item  Specification
Cell Rated capacity  100Ah
Rated voltage  3.2V
 Cut-off voltage of charge 3.65±0.05 V
Cut-off discharge  voltage  2.00V
Charge temperature    0ºC~ 60ºC
Discharge   temperature  -20ºC~ 60ºC
Weight  2.30±0.5 Kg
Cell safety   performance  Crush/Nail/Over   charge/Over discharge/ Heating/Free fall etc.






System parameters
Configuration  2P16S
Rated voltage  51.2V
Rated capacity  200Ah
Rated energy  ≥10.24KWh
Charge   current  100A
Max.   discharge current 100A
Max.   instant discharge current  130A(3S)
Cut-off   voltage of charge  58.4V
Cut-off voltage of discharge 40V
Charge temperature    0ºC~ 60ºC
Discharge   temperature  -20ºC~ 60ºC
Storage

≤6 months/:-20 ~ 35 °C,
30%≤SOC≤60%
≤3 months/:35~45 ºC,
30%≤SOC≤60%
Net   weight

≈107kg





48V Lithium Ion Battery 5kwh 10kwh 48V 50ah 100ah 150ah 200ah LiFePO4 Battery 48V Solar System Lithium Battery

Type Item Specification

System parameters
Rated voltage 51.2V
Rated capacity 200Ah
Rated energy 10.24KWh
Charge current 100A
Max. discharge current 100A
Max. instant discharge current 130(3S)
Cut-off voltage of charge 58.4V
Cut-off voltage of discharge 40V
Charge temperature 0ºC~ 60ºC
Discharge temperature -20ºC~ 60ºC
Weight ≈105kg

 Product details:

* Comprehensive BMS to match the mainstream inverters

* Convenient RS485, CAN communication
* Wide application both in home use and industrial
* Long cycle life
* Wide temperature range


48V Lithium Ion Battery 5kwh 10kwh 48V 50ah 100ah 150ah 200ah LiFePO4 Battery 48V Solar System Lithium Battery48V Lithium Ion Battery 5kwh 10kwh 48V 50ah 100ah 150ah 200ah LiFePO4 Battery 48V Solar System Lithium Battery48V Lithium Ion Battery 5kwh 10kwh 48V 50ah 100ah 150ah 200ah LiFePO4 Battery 48V Solar System Lithium Battery48V Lithium Ion Battery 5kwh 10kwh 48V 50ah 100ah 150ah 200ah LiFePO4 Battery 48V Solar System Lithium Battery









10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System
10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System
10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System
 10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System



10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System
10kwh 48V 200ah LiFePO4 Battery Powerwall for Home Solar Storage System
