6V 5Ah Medical Battery 6V 5Ah Lithium Ion LiFePO4 LFP Battery

Model No.︰JW645
Brand Name︰JINWO or OEM
Country of Origin︰China
Unit Price︰-
Minimum Order︰100 pc
Share on:

 Total 51 Related Items
Prev4647484950Next

Product Description

6V 5Ah Lawn and Garden Battery Lantern Battery Lithium Ion LiFePO4 Battery 6V 4.5Ah 6V 5Ah Lawn Lantern Batteries



Quick Detail:

1. Built-in automatic protection for over-charge, over-discharge and over-temperature conditions
2. Intra-module balancing
3. Maintenance-free
4. Thousands of cycles, under normal conditions
5. Can be charged using most standard lead-acid chargers


Description:

We can design any 12V LiFePO4 with the same SLA case size to replace old SLA battery! Tongyu provide the best price with high quality products, can accept small orders.

Maintenance-free
No memory effect
Low self discharge and longer service lifespan
High discharge rate
Wide operation temperature range


Advantage of lifepo4 battery:

  1. long cycle life
  2. low weight ,small size
  3. fast charge/discharge with large current
  4. high temperature resistant
  5. large capacity
  6. no memory effect
  7. enviroment-friendly



Applications:


  • Golf trolleys, Golf carts,
  • UPS backup
  • Fire alarm and security systems
  • Telecommunication equipment
  • Electric equipment and telemeter equipment
  • Light equipment, dc 12v led lights
  • Wireless lawn movers vacuum cleaner and washing machine
  • Toys and consumer electronics
  • Solar systems 12v
  • Portable power tools measuring and medical equipment Portable video camera portable personal computer
  • Garden lighting
  • Sound systems
  • And etc




Specifications:



Item

JW6V4A5

Nominal Capacity

4.5Ah

Nominal Voltage

6.4V

Normal discharge current

1A

Maximum continuous current

4A

Max pulse instant current

12A

Discharge cut-off voltage

10V

Max charge voltage

14.6V

Charge current

≤2A

Battery housing

ABS 6V 4Ah,5Ah SLA Case

Charge temperature

0℃~45℃

Discharge temperature

-20℃~60℃

Humidity

5%≤RH≤85%

Size(L*W*H)

102*47*69mm

Weight

300-400g

Protection function

Overcharge protection, Over discharge protection, Over current protection, Temperature protection, Balanced function





You can now replace the lead acid (SLA , AGM or GEL) batteries with these modern LiFePO4 batteries and see the difference in the performance immediately!

The size is the same, the performance and service-life is much better!



6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery
Compared with Seal lead acid battery, lifepo4 battery has many advantages:

1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety
The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.

4. Light weight and smaller dimension
The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA,  65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery
High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design
We can install many single cells in series and in parallel and it can fully discharge

6. Good thermal stability: - 40°C to 70°C

7. Back fast charge, good consistence, no memory effect, can equip battery charger.
Can be recharged anytime, no reduction of the capacity

8. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided.





Typical Application:



Communication base station
Power monitoring,Portable applications
billboard,Patrol car
Automotive application
Electric forklift
Solar street lamps
UPS power supply
Household energy storage
Hydrological monitoring

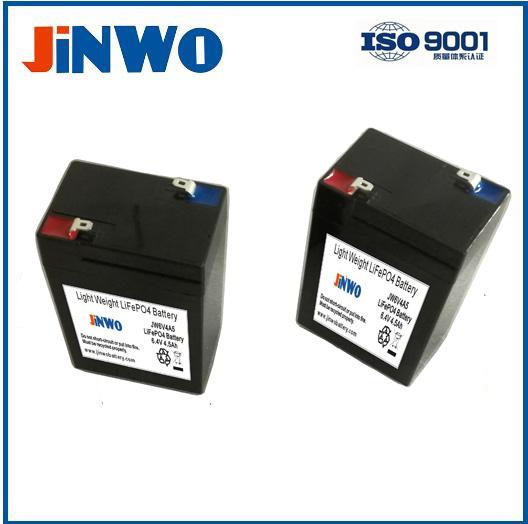

Product's picture





 6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery





6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery





Model JW12V, JW6V
Battery Type Lithium ion Battery(Lead acid replacement battery)
Voltage 12V, 6V
Capacity 4.5Ah, 7Ah, 7.5Ah 8Ah, 9Ah, 10Ah, 12Ah, 15Ah
  17Ah 18Ah, 19Ah 20Ah, 24Ah, 30Ah 40Ah 60Ah 100Ah

Brand Options JINWO, neutral or customized brand
Cycle life
>2000times



Warranty  12 months
Package Individual box package







6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery6V 5Ah Portable Rechargeable Lighting 6V 5Ah LiFePO4 Lithium Battery Portable Rechargeable Lighting 6V 5Ah Lithium Battery

Our Services



      - A professional sales team which provide consultant service and the most competitive battery solutions.

      - OEM and ODM designs and lables are welcome.

      - Small Order is available.

     - Wide-range battery products to satisfy different customer’s requirement.

     - Quick response, every inquiry will be replied within 24 hours.

     - Good after-sale service, long product warranty and continual technique support

Contact us

Send your inquiry to us and you will get:

  • Get Quotations Immediately
  • More Product Detail
  • Best Price
  • Have a chance to get a free sample

   Send inquiries at below NOW ⇓







Welcome to visit our company any time !

We are ISO certified factory!

Payment Terms︰TT, LC, PAYPAL
Product Image
